SLIM-RFA-1 rev 0
Dual Buffer Amplifier for 1-2 GHz
Released 2-09-11. Original release of module,
SLIM-RFA-1 Rev 0.
Updated
5-16-15. Change C5, C15. Change Parts List to
Rev A and move to this page.
SLIM-RFA-1, Dual Buffer Amplifier,
size-A
Use your mouse's "right click" and "Save Link" to download:
a. SKSLIM-RFA-1 rev 0
Schematic, in
ExpressPCB software.

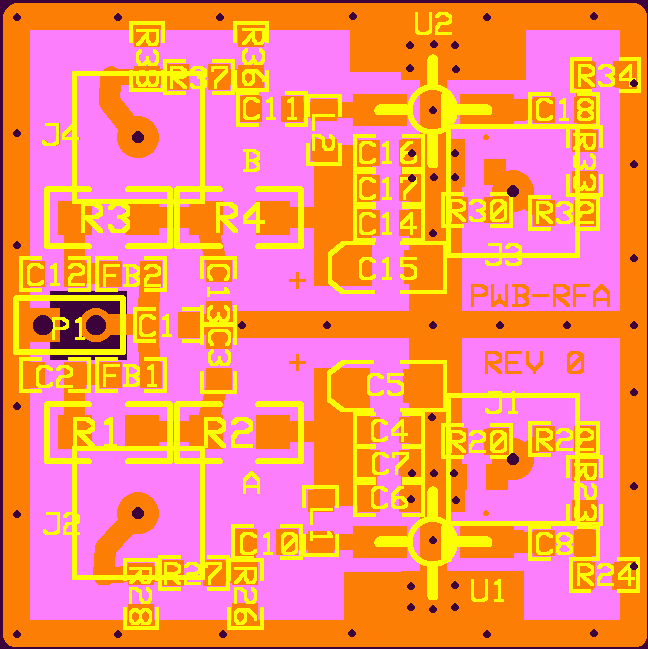

b. LAYSLIM-RFA-1 rev 0
Layout, in
ExpressPCB software. Use for locating parts on board.
c. PWB-RFA,
PWB artwork, in
ExpressPCB software. Use for ordering from Express.
d. PLSLIM-RFA-1
Parts List maintained on this page, only.
The SLIM-RFA-1 is a Dual Amplifier, designed for
frequencies between 1 GHz and 2 GHz. Each Buffer Amplifier will provide
approximately 0 dB gain. The purpose of the amplifier is not to
provide gain, but reverse isolation. The reverse isolation (S12) should
be about -38 dB. This module was developed using the PWB-RFA as the
core
design. Click to see the PWB-RFA Web Page.
It should be noted that this buffer amplifier was
designed with the intention of using the MMIC Amplifier (U1 or U2) in
saturation, (it is not operated within its linear region). Its output
is intended to drive a mixer's L port. For linear operation, the input
signal should have a maximum power level of +4 dBm.
In the case of the MSA, a single Buffer/Amplifier is
inserted between PLO 2 and Mixer 3. Only half of this module is
occupied with components.

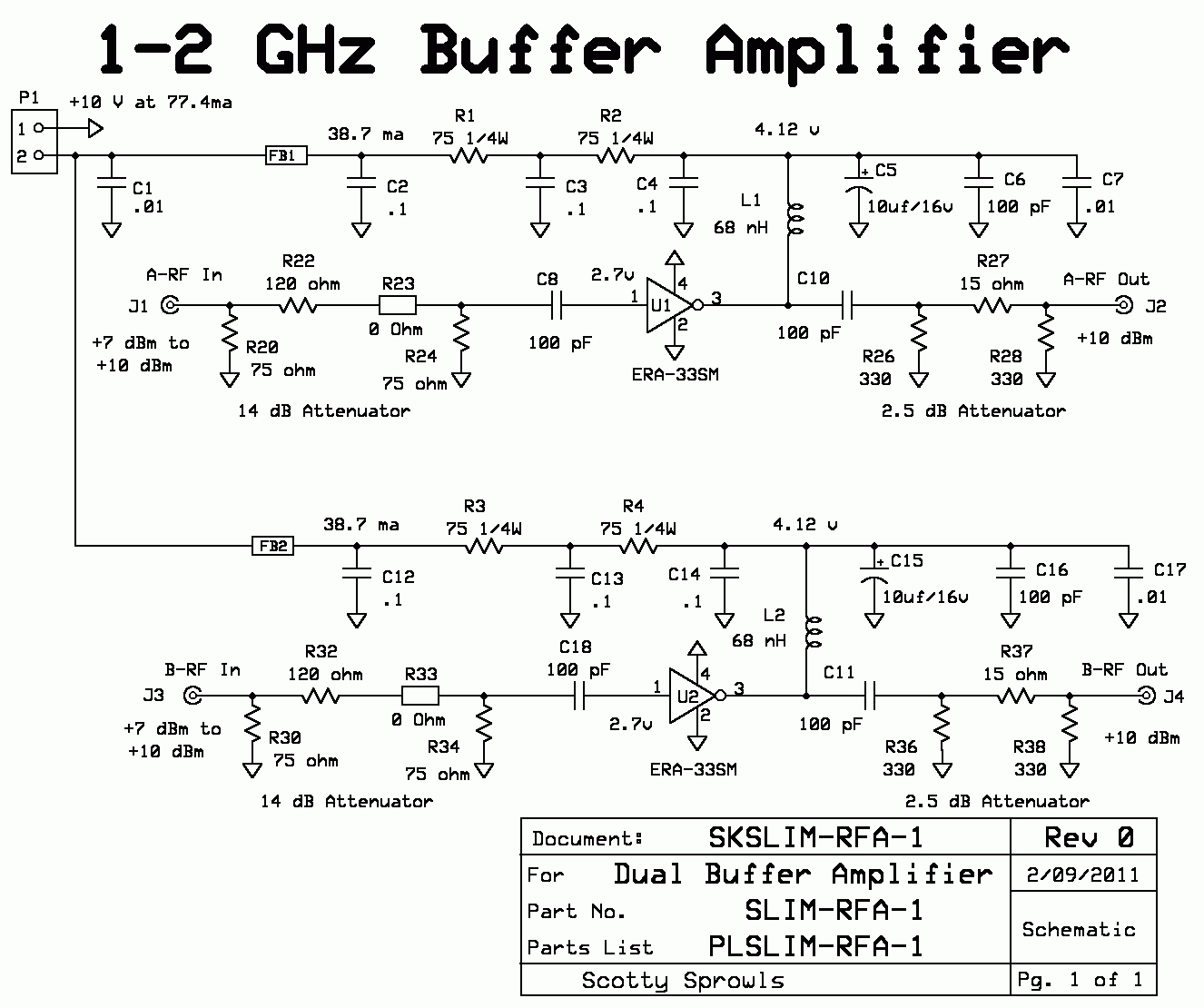

SLIM-RFA-1 Schematic
