SLIM-BSQ
Buffer Squarer
Updated 5-14-08.  Update for name changes.
Updated 8-11-09.  Update components without changing other documents. Add revision history
Updated 5-18-15.  Update Parts List, Change PL to Rev A, and move to this page.

SLIM-BSQ, Buffer Squarer, size-A
Use your mouse's "right click" and "Save Link" to download:
a.
SKSLIM-BSQ Rev 0, Schematic, in ExpressPCB software.
b.  LAYSLIM-BSQ Rev 0, Layout, in ExpressPCB software. Use this drawing to locate parts on the Board
c.  PLSLIM BSQ Rev A, Parts List, on bottom of this page, only.
d.  PWB-MOB Rev 0, Base artwork for PWB, in ExpressPCB software.  Use this drawing to order the pwb from Express.
This SLIM is constructed on a common printed wiring board, the PWB-MOB.  Click to go to the page describing the Master Osc or Buffer.

Revision History
Original Release: Released on 7-01-2007

    The purpose of the SLIM-BSQ is to take an iput signal, buffer it, square the waveform, and drive up to 3 separate users.  The input signal can be a sine or square wave with a level from -10 dBm to +18 dBm.  The input impedance is determined by the value of R9.
    The Buffer Squarer contains a center biased buffer and 3 line drivers.  Each output is 5 volt CMOS that can drive a 50 ohm line
that is terminated with either, a high impedance load, or 50 ohms.  A 49.9 ohm resistor is shown as a series element in each output.
Updated 8-11-09.    However, a 33 ohm resistor is a much better matching resistor.

For a 50 ohm line, with a high impedance load at the end of that line, the mismatched load will create a reflection.  The reflected signal will be dissipated in the series 49.9 (or 33) ohm resistor.
    For a 50 ohm line, with a 50 ohm load at the end of that line, the 50 ohm load will receive a 2.5 volt peak to peak square wave.  If this is not sufficient, the 49.9 ohm series resistor can be replaced with a low impedance coupling capacitor (.01 uf for 64 MHz).

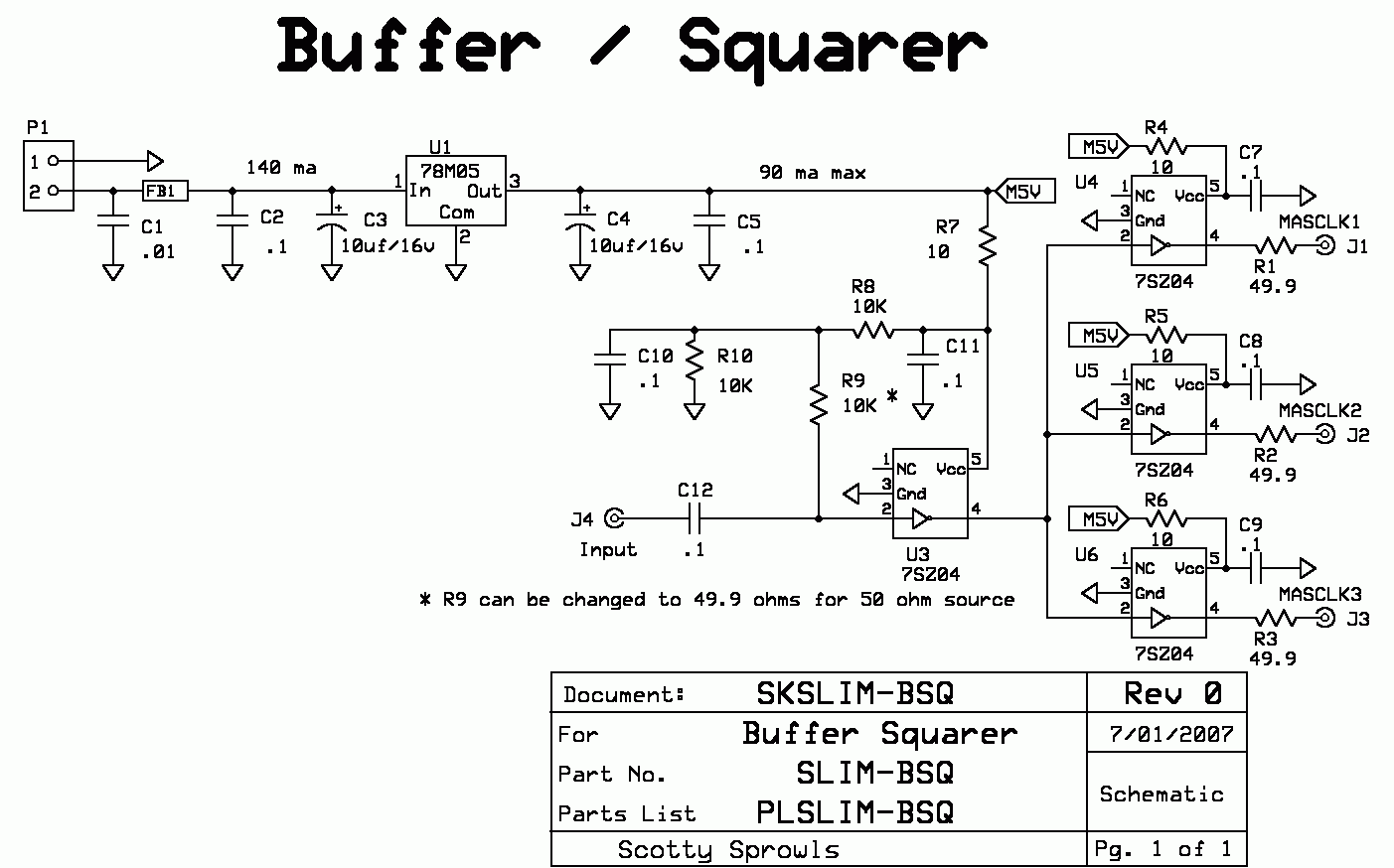

SKSLIM-BSQ, Schematic of Buffer Squarer, SLIM-BSQ
slim/skslim_bsq.gif
Updated 8-11-09.  A 33 ohm resistor is a much better matching resistor, used for R1, R2, and R3.
Updated 8-11-09.  The ferrite bead, FB1 may be replaced with a 10 ohm resistor to improve noise rejection on the input power line.

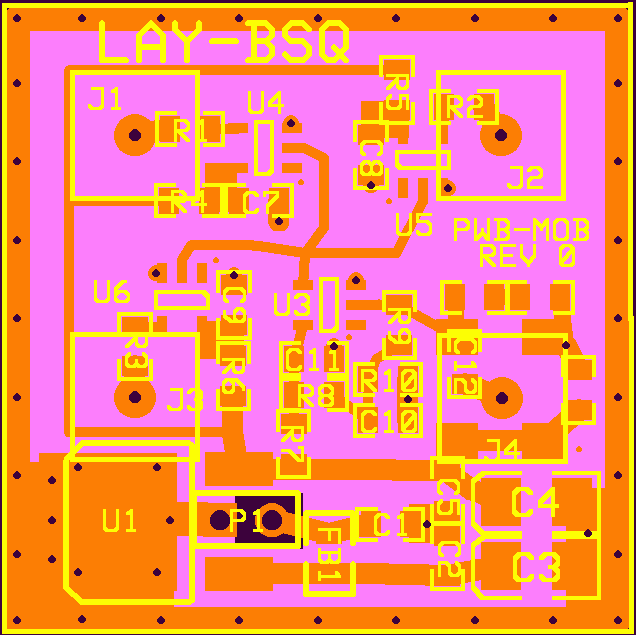

LAY-BSQ, Layout of Buffer Squarer, SLIM-BSQ
slim/layslim_bsq.gif

PLSLIM-BSQ Rev A, 5-18-2015  Parts List
Des. Value Part Number Digikey Number Cost Notes
C1 .01 uF C0805C103K5RACTU 399-1158-1-ND 0.04
C2 .1 uF C0805C104K3RACTU 399-1168-1-ND 0.05
C3 10uf/16v TPSB106K016R0500 478-5230-1-ND 0.65 Rev A
C4 10uf/16v
TPSB106K016R0500 478-5230-1-ND 0.65 Rev A
C5 .1 uF C0805C104K3RACTU 399-1168-1-ND 0.05
C7 .1 uF C0805C104K3RACTU 399-1168-1-ND 0.05
C8 .1 uF C0805C104K3RACTU 399-1168-1-ND 0.05
C9 .1 uF C0805C104K3RACTU 399-1168-1-ND 0.05
C10 .1 uF C0805C104K3RACTU 399-1168-1-ND 0.05
C11 .1 uF C0805C104K3RACTU 399-1168-1-ND 0.05
C12 .1 uF C0805C104K3RACTU 399-1168-1-ND 0.05
FB1 Ferite Bead BLM21PG221SN1D 490-1054-1-ND 0.06
FB1-alt 10 ohm MCR10EZHF10.0 RHM10.0CCT-ND 0.04 "optional, noise reduction"
J1 SMA OPT "Molex, 538-73391-0070" WM5544-ND 4.74
J2 SMA OPT "Molex, 538-73391-0070" WM5544-ND 4.74
J3 SMA OPT "Molex, 538-73391-0070" WM5544-ND 4.74
J4 SMA OPT "Molex, 538-73391-0070" WM5544-ND 4.74
P1 "Conn, 2 pin" sold as row of 36 pins (partial) S1012-36-ND 0.06
R1 33 MCR10EZHF33.0 RHM33.0CCT-ND 0.04 Rev A
R2 33 MCR10EZHF33.0 RHM33.0CCT-ND 0.04 Rev A
R3 33 MCR10EZHF33.0 RHM33.0CCT-ND 0.04 Rev A
R4 10 MCR10EZHF10.0 RHM10.0CCT-ND 0.04
R5 10 MCR10EZHF10.0 RHM10.0CCT-ND 0.04
R6 10 MCR10EZHF10.0 RHM10.0CCT-ND 0.04
R7 10 MCR10EZHF10.0 RHM10.0CCT-ND 0.04
R8 10K MCR10EZHF10.0K RHM10.0KCCT-ND 0.04
R9 10K MCR10EZHF10.0K RHM10.0KCCT-ND 0.04
R10 10K MCR10EZHF10.0K RHM10.0KCCT-ND 0.04
U1 78M05 L78M05CDT 497-2956-5-ND 0.70
U3 7SZ04 NC7SZ04M5X NC7SZ04M5XCT-ND 0.33
U4 7SZ04 NC7SZ04M5X NC7SZ04M5XCT-ND 0.33
U5 7SZ04 NC7SZ04M5X NC7SZ04M5XCT-ND 0.33
U6 7SZ04 NC7SZ04M5X NC7SZ04M5XCT-ND 0.33
PWB Circuit Board PWB-MOB 3.28
