SLIM-PLO-2 rev B
Phase Locked Oscillator
with Passive Loop

Updated 12-26-10Update PLL chip support and move Parts List to this page.
Updated 5-15-15Update and change Parts List from Rev D to Rev E (capacitor change)

SLIM-PLO-2,
Phase Locked Oscillator with passive loop, size-B
Use your mouse's "right click" and "Save Link" to download:
a.
SKSLIM-PLO-2.sch rev C, Schematic, in ExpressPCB software.
b.  LAYSLIM-PLO-2.pcb rev A, Component Layout, in ExpressPCB software.  Use to locate parts on the board.
c.  PLSLIM-PLO-2.rev E, Updated 1-23-16.  Parts List is maintained only on this page.
d.  PWB-PLO.pcb rev B, Master Layout Artwork, in ExpressPCB software.  Use to order pwb from Express.  The Rev A pwb is still acceptable to use for PLO 2.
This SLIM is constructed on a common printed wiring board, the PWB-PLO.  Click to get full information on the Basic Phase Locked Oscillator.

SLIM-PLO-2
    Frequency output = 940 MHz to 1075 MHz. PLL is LMX 2326 (obsolete) or ADF 4118. The loop filter is passive (no op amp). Dual RF outputs, +10 dBm at J2 and J3. Phase noise at 1024 MHz is -99 dBc, 5 KHz away from carrier.
    R12 and C27 are optional.  Installed, they present a 50 ohm load to the driver.  Omitted, the PLL is high impedance CMOS logic.

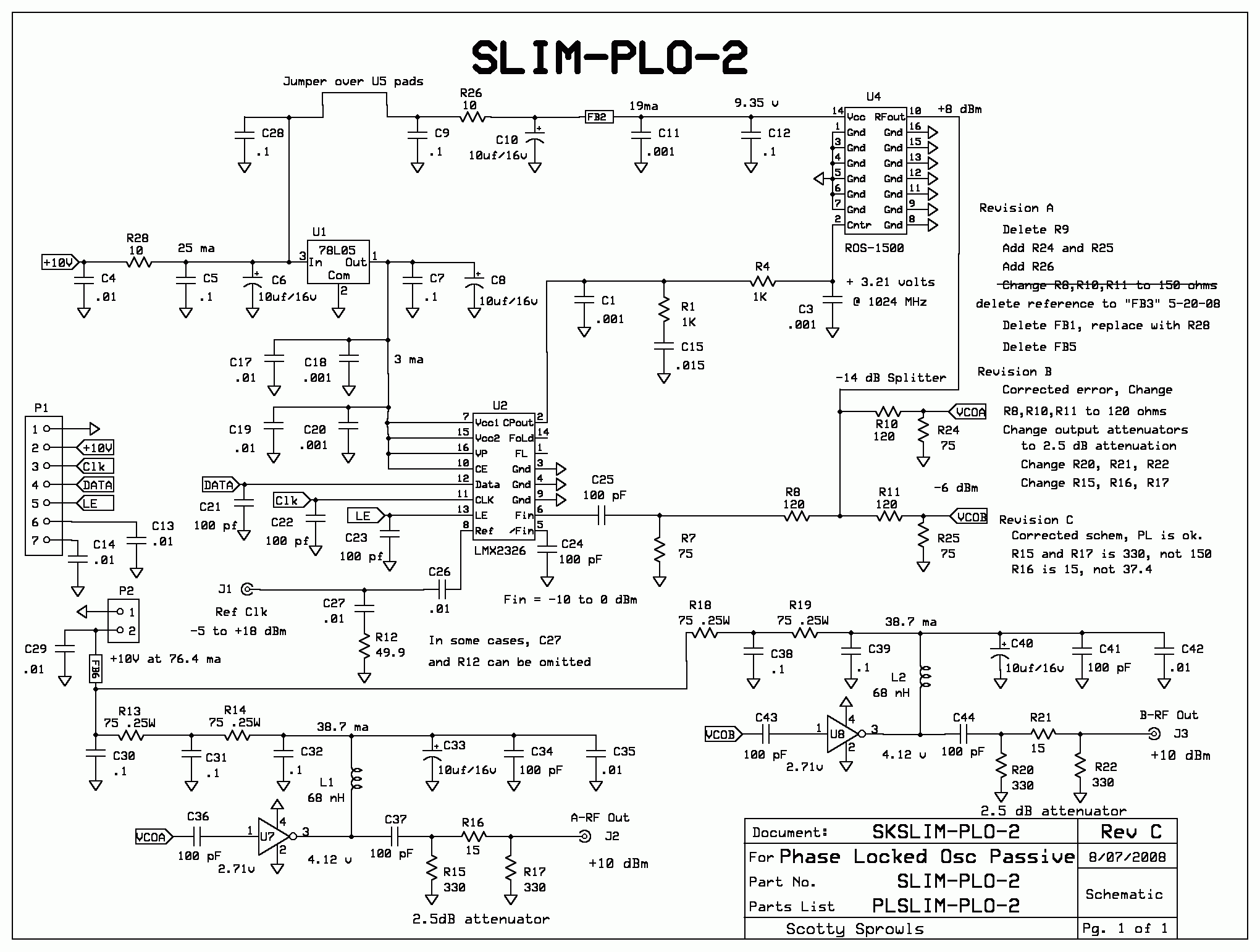

SK-PLO-2, Schematic of SLIM-PLO-2
slim/skslim_plo_2.gif
Note: LM2326 shown at U2 is obsolete. Use ADF4118.
Note: R23 is not shown on schematic. It is used only when ADF 4112 is substituted for U2. It is placed from U2 pin 1 to ground.

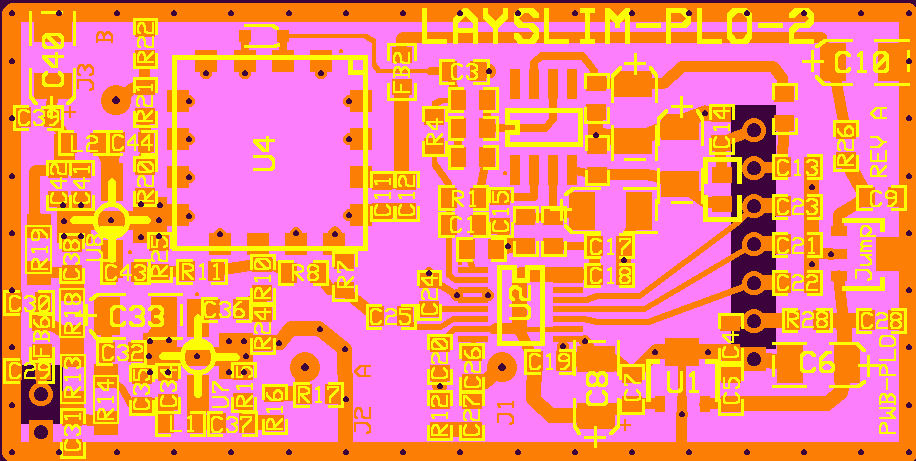

LAY-PLO-2, Layout of SLIM-PLO-2
slim/layslim_plo_2.gif
    This layout is used as a parts locator.  Not to be used for ordering the PWB.  Please note that the picture shows that the PWB is a Rev A.  Rev B can be substituted.
Note: R23 is not shown on layout. It is used only when ADF 4112 is substituted for U2. It is placed on the available circuit pads at U2 pin 1 to ground.

    Special note about the Minicircuits VCO, U4, ROS 1500.  Minicircuits specifications show conflicting data.  Vcc is actually  +10 volts and it's output power is well over +8 dBm at 1024 MHz.

PLSK-SLIM-PLO-2 Rev E, 5-15-2015 (updated 1-23-2016. Values not changed, just part numbers. Changes in bold type)
Designator Value Part Number Digikey Number Cost Notes
C1 .001 uF C0805C102J5GACTU 399-1136-1-ND 0.08
C3 .001 uF C0805C102J5GACTU 399-1136-1-ND 0.08
C4 .01 uF C0805C103K5RACTU 399-1158-1-ND 0.04
C5 .1 uF C0805C104K3RACTU 399-1168-1-ND 0.05
C6 10uf/16v AVX, TPSB106K016R0500 478-5230-1-ND 0.65 low ESR, Rev E
C7 .1 uF C0805C104K3RACTU 399-1168-1-ND 0.05
C8 10uf/16v AVX, TPSB106K016R0500 478-5230-1-ND 0.65 low ESR, Rev E
C9 .1 uF C0805C104K3RACTU 399-1168-1-ND 0.05
C10 10uf/16v AVX, TPSB106K016R0500 478-5230-1-ND 0.65 low ESR, Rev E
C11 .001 uF C0805C102J5GACTU 399-1136-1-ND 0.08
C12 .1 uF C0805C104K3RACTU 399-1168-1-ND 0.05
C13 .01 uF C0805C103K5RACTU 399-1158-1-ND 0.04
C14 .01 uF C0805C103K5RACTU 399-1158-1-ND 0.04
C15
.015 uF
C0805C153K5RACTU
399-1161-1-ND
0.05

C17 .01 uF C0805C103K5RACTU 399-1158-1-ND 0.04
C18 .001 uF C0805C102J5GACTU 399-1136-1-ND 0.08
C19 .01 uF C0805C103K5RACTU 399-1158-1-ND 0.04
C20 .001 uF C0805C102J5GACTU 399-1136-1-ND 0.08
C21 100 pF C0805C101K5GACTU 399-1121-1-ND 0.05
C22 100 pF C0805C101K5GACTU 399-1121-1-ND 0.05
C23 100 pF C0805C101K5GACTU 399-1121-1-ND 0.05
C24 100 pF C0805C101K5GACTU 399-1121-1-ND 0.05
C25 100 pF C0805C101K5GACTU 399-1121-1-ND 0.05
C26 .01 uF C0805C103K5RACTU 399-1158-1-ND 0.04
C27 .01 uF C0805C103K5RACTU 399-1158-1-ND 0.04
C28 .1 uF C0805C104K3RACTU 399-1168-1-ND 0.05
C29 .01 uF C0805C103K5RACTU 399-1158-1-ND 0.04
C30 .1 uF C0805C104K3RACTU 399-1168-1-ND 0.05
C31 .1 uF C0805C104K3RACTU 399-1168-1-ND 0.05
C32 .1 uF C0805C104K3RACTU 399-1168-1-ND 0.05
C33 10uf/16v AVX, TPSB106K016R0500 478-5230-1-ND 0.65 low ESR, Rev E
C34 100 pF C0805C101K5GACTU 399-1121-1-ND 0.05
C35 .01 uF C0805C103K5RACTU 399-1158-1-ND 0.04
C36 100 pF C0805C101K5GACTU 399-1121-1-ND 0.05
C37 100 pF C0805C101K5GACTU 399-1121-1-ND 0.05
C38 .1 uF C0805C104K3RACTU 399-1168-1-ND 0.05
C39 .1 uF C0805C104K3RACTU 399-1168-1-ND 0.05
C40 10uf/16v AVX, TPSB106K016R0500 478-5230-1-ND 0.65 low ESR, Rev E
C41 100 pF C0805C101K5GACTU 399-1121-1-ND 0.05
C42 .01 uF C0805C103K5RACTU 399-1158-1-ND 0.04
C43 100 pF C0805C101K5GACTU 399-1121-1-ND 0.05
C44 100 pF C0805C101K5GACTU 399-1121-1-ND 0.05
FB1



Rev A deleted
FB2 Ferite Bead BLM21PG221SN1D 490-1054-1-ND 0.06
FB5



Rev A deleted
FB6 Ferite Bead BLM21PG221SN1D 490-1054-1-ND 0.06
J1 SMA Molex, 538-73391-0070 WM5544-ND 4.74
J2 SMA Molex, 538-73391-0070 WM5544-ND 4.74
J3 SMA Molex, 538-73391-0070 WM5544-ND 4.74
L1 68 nH LQW18AN68NJ00D 490-1178-1-ND 0.39 substitute carefully
L2 68 nH LQW18AN68NJ00D 490-1178-1-ND 0.39 substitute carefully
P1 Conn. 7 pin S1012-36-ND (partial) S1012-36-ND 0.21 sold as row of 36 pins
P2 Conn. 2 pin
S1012-36-ND (partial) S1012-36-ND 0.06 sold as row of 36 pins
R1 1 K MCR10EZHF1.00K RHM1.00KCCT-ND 0.04
R4
1 K MCR10EZHF1.00K RHM1.00KCCT-ND 0.04
R7 75 MCR10ERTF75R0 RHM75CHCT-ND 0.04
R8 120 MCR10ERTF1200 RHM120CHCT-ND 0.04 Rev B, was 24.9 ohms
R9



Rev A deleted
R10 120 MCR10ERTF1200 RHM120CHCT-ND 0.04 Rev B, was 24.9 ohms
R11 120 MCR10ERTF1200 RHM120CHCT-ND 0.04 Rev B, was 24.9 ohms
R12 49.9 MCR10ERTF49R9 RHM49.9CHCT-ND 0.04
R13 75 1/4W MCR18ERTF75R0 RHM75CJCT-ND 0.05
R14 75 1/4W MCR18ERTF75R0 RHM75CJCT-ND 0.05
R15 330 MCR10ERTF3300 RHM330CHCT-ND 0.04 Rev B, was 150 ohms
R16 15 MCR10ERTF15R0 RHM15CHCT-ND 0.04 Rev B, was 37.4 ohms
R17 330 MCR10ERTF3300 RHM330CHCT-ND 0.04 Rev B, was 150 ohms
R18 75 1/4W MCR18ERTF75R0 RHM75CJCT-ND 0.05
R19 75 1/4W MCR18ERTF75R0 RHM75CJCT-ND 0.05
R20 330 MCR10ERTF3300 RHM330CHCT-ND 0.04 Rev B, was 66.5 ohms
R21 15 MCR10ERTF15R0 RHM15CHCT-ND 0.04 Rev B, was 174 ohms
R22 330 MCR10ERTF3300 RHM330CHCT-ND 0.04 Rev B, was 66.5 ohms
R23-opt
4.7 K
MCR10ERTF4701 RHM4.70KCHCT-ND 0.04
used with ADF 4112 only
R24 75 MCR10ERTF75R0 RHM75CHCT-ND 0.04 Rev C, was 150 ohms
R25 75 MCR10ERTF75R0 RHM75CHCT-ND 0.04 Rev C, was 150 ohms
R26 10 MCR10ERTF10R0 RHM10.0CHCT-ND 0.04 Rev A added
R28 10 MCR10ERTF10R0 RHM10.0CHCT-ND 0.04 Rev A added
U1 78L05 78L05ACU 497-1183-1-ND 0.77
U2 LMX2326 LMX2326TM LMX2326TM-ND 2.88 obsolete part
U2-alt
ADF4118
ADF4118BRUZ ADF4118BRUZ-ND 5.24
replaces LMX2326
U4 ROS-1500
Minicircuits

16.95
U7 ERA-33SM Minicircuits
1.72
U8 ERA-33SM Minicircuits
1.72
PWB Circuit Board PWB-PLO
6.56 ExpressPCB
